Our Products

Electromagnetic Overhead Crane

With electromagnetic lifter to handle ferrous metals such as steel plates, steel coils, billets, pig iron, etc.

Description:

Electromagnetic overhead crane from Henan Mine Crane Co., Ltd. (brand: KY) is a professional heavy-duty lifting equipment, mainly used in steel mills, shipyards, ports, scrap yards and other working conditions for lifting magnetic ferrous metals such as steel plates, steel coils, billets, pig iron and scrap steel.

​

The basic structure of an electromagnetic bridge crane is identical to that of a hook-type bridge crane; the only difference is that the hook is fitted with a DC lifting electromagnet, which is used to hoist ferromagnetic ferrous metals and their products. An AC power supply is converted into DC power by means of a thyristor-based DC unit installed within the operator's cab; this DC power is then transmitted via cable to the electromagnet through a specialized cable reel mounted on the trolley.

28t-steel-coil-electromagnetic-EOT-crane

Main Types:

  • Electromagnetic Hanging Beam Overhead Crane

    • Double-girder structure, equipped with fixed / telescopic / rotating electromagnetic hanging beam

    • Dual-lifting-point hoisting, stable operation, suitable for long and large steel plates

  • Electromagnetic Chuck Overhead Crane

    • Equipped with DC electromagnetic chuck suspended by lifting hook

    • Suitable for bulk materials such as scrap steel and steel ingots

  • Grab & Electromagnetic Dual-Purpose Overhead Crane (QP Type)

    • Switchable between grab bucket and electromagnetic chuck

    • Dual functions for bulk materials and magnetic metal handling

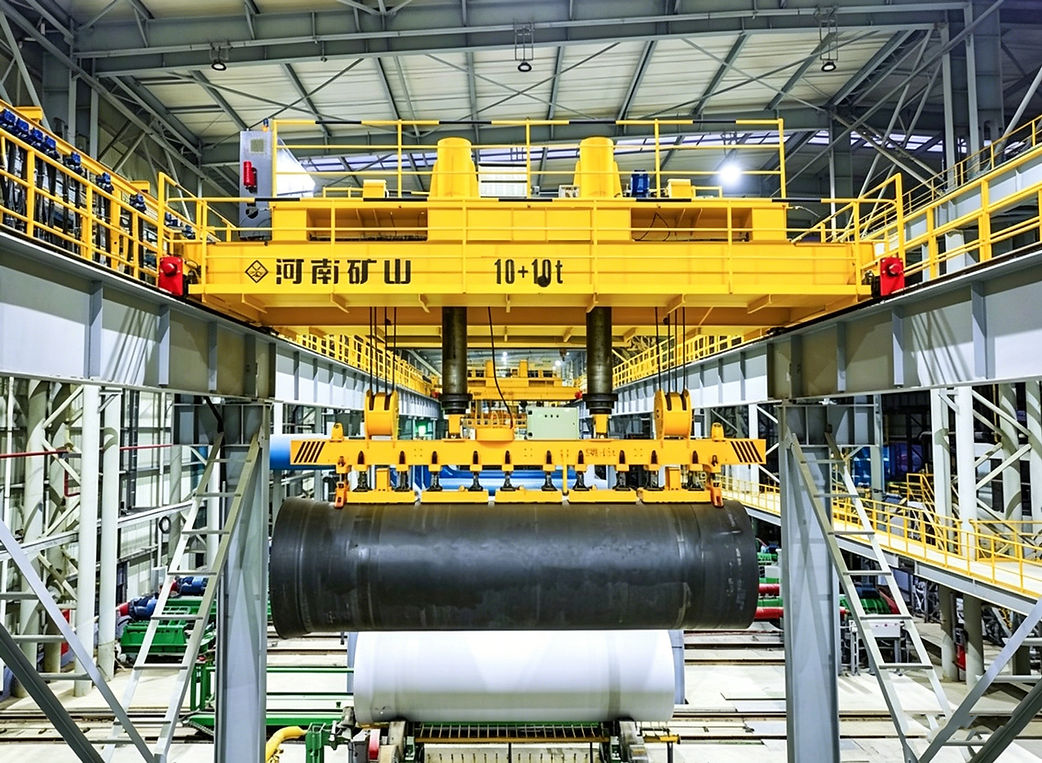

20t-magnetic-eot-crane

Parameters & Features:

  • Lifting Capacity: Standard 5t–50t; custom available for extra-heavy conditions

  • Span: Standard 10.5m–31.5m, non-standard customization supported

  • Duty Class: A6–A7 heavy-duty working class, adaptable to high-temperature and heavy-load environments

  • Electromagnetic System: DC220V power supply, high temperature resistance up to 700℃

  • Power-off Magnetic Retention: Emergency magnetic retention for 10–30 minutes in case of power failure to prevent falling accidents

  • Control System: PLC control, variable frequency speed regulation, wireless remote control, overload alarm and self-diagnosis function

  • Structure: Box-type bridge frame, wear-resistant wheels, protected cables, strong durability

henan-mine-magnetic-EOT-crane

Application:

  • Steel mills: Handling of billets, steel plates, steel coils; hot rolling and cold rolling production lines

  • Shipyards: Lifting of extra-long steel plates and hull sections

  • Ports & stockyards: Loading and unloading of scrap steel, section steel and metal materials

  • Recycling plants: Dismantling, baling and transferring of scrap metal

metal-scrap-magnetic-disc-EOT-crane

Advantages:

  • Safe and reliable with mandatory power-off magnetic retention system

  • High efficiency with optional 360° rotating and telescopic hanging beam

  • Strong adaptability to high-temperature, dusty and heavy-load working conditions

  • Intelligent options: remote monitoring, automatic positioning and weighing system
